1-2-3 Bottom Display Lid Boxes
A 1-2-3 auto-lock bottom paired with a hinged display lid that opens flat for countertop merchandising.
Structural & Engineering Details
How This Structure Works
This style combines a snap-together 1-2-3 auto-lock base with a hinged lid that folds back to sit as a printed display panel. The locking bottom means the box squares up as you push the panels down, so the interior opens into a clean rectangular well for products. Because the lid stays upright behind the goods, a shopper reads branding and messaging while the contents remain reachable. The geometry can suit countertop merchandising where units are picked one at a time, and the fold-flat lid can turn the closed carton into an open tray without a separate stand or extra parts.
Good Fit For
- Countertop retail displays for small consumer goods
- Impulse-buy items near a checkout
- Sampling or promotional runs that ship flat
Key Advantages
- Base locks square without glue during setup
- Lid doubles as an upright branded backdrop
- Ships and stores flat to save space
Assembly & Construction

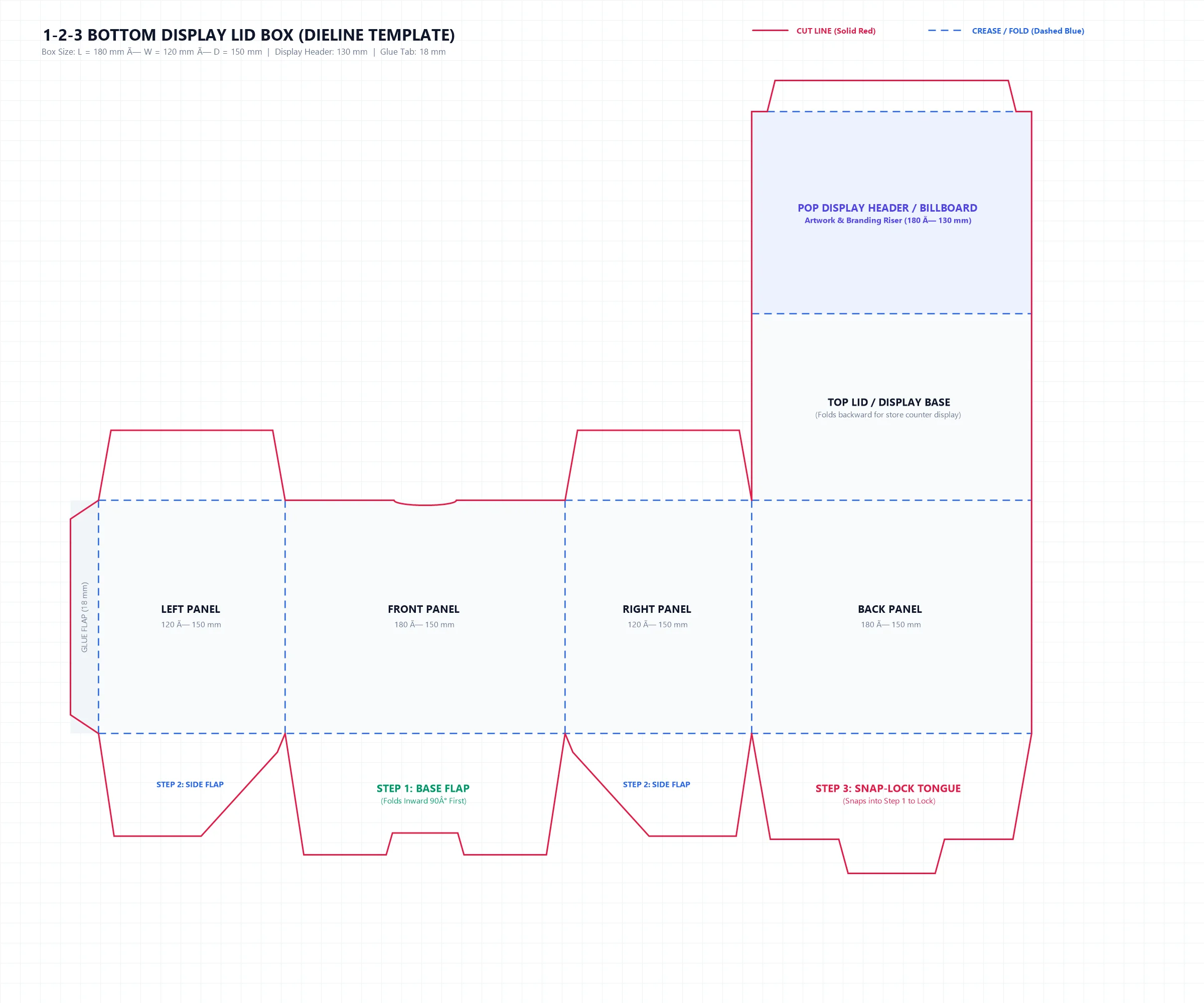

The base uses interlocking bottom flaps that fold in a set 1-2-3 sequence so the panels tuck under one another and hold square without adhesive. Side walls raise as the bottom is pressed home, and the hinged lid scores along the back edge so it can close over the opening or fold rearward into a display position. Packers can set the base by hand quickly, then decide whether the lid seals for transit or stays open on the shelf.
Materials & Board Options
A folding boxboard or lightweight paperboard can suit smaller, lighter versions where crisp folds and print matter most, while heavier fills may point toward a thicker caliper or a light corrugated grade. Final caliper, flute, and coating typically depend on the exact dimensions, product weight, print coverage, filling method, and how the cartons move through distribution, so those variables are usually confirmed against a physical sample.
Pre-Production Planning Checklist
- Confirm the loaded weight the auto-lock base must hold at pack-out
- Check the lid folds fully flat into its display position
- Verify print bleed and any coating across the fold and lock lines
