Four Corner Tray Boxes
A four-corner tray variant with reinforced walls for confident stacking and display.
Structural & Engineering Details

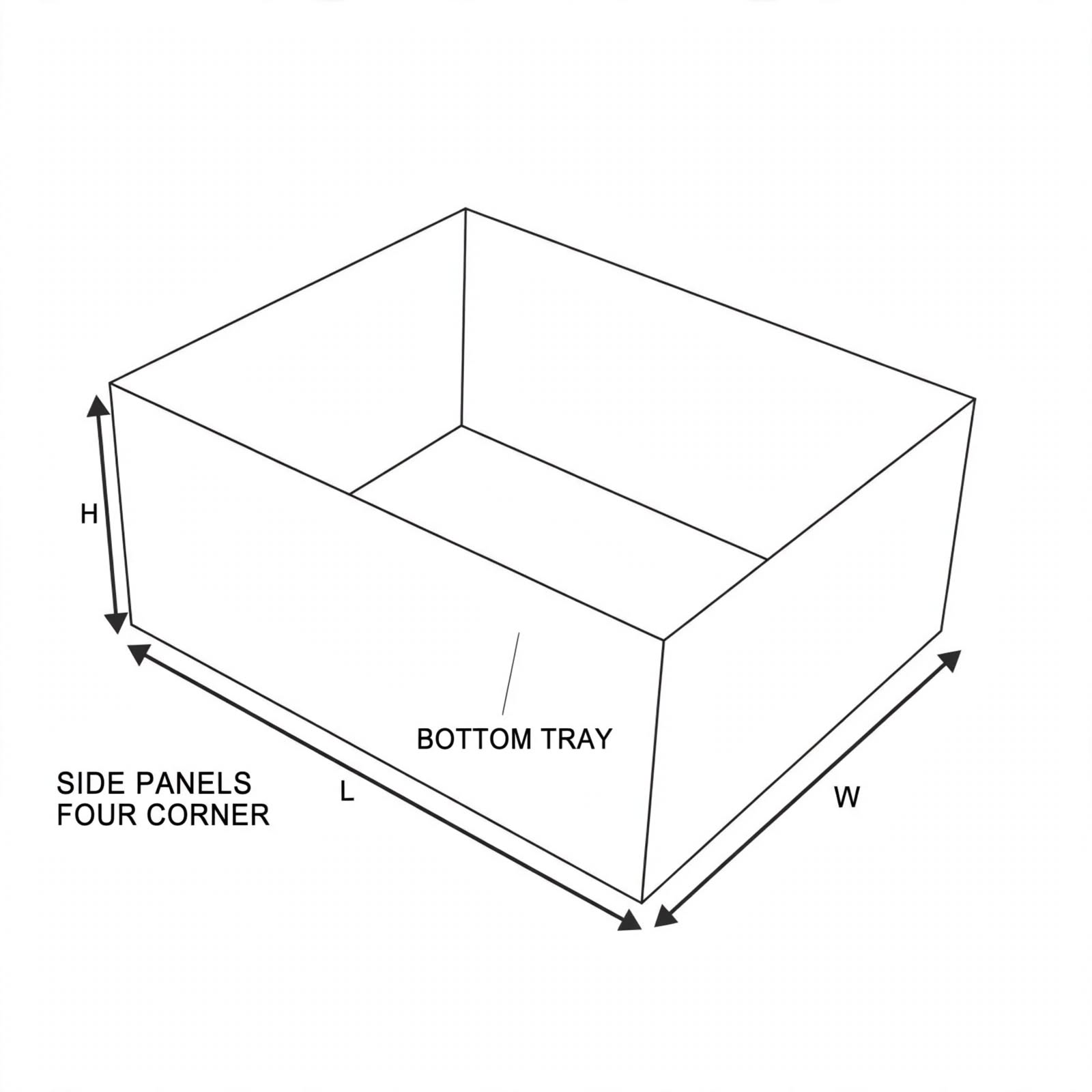

How This Structure Works
This four-corner tray variant reinforces its walls for confident stacking and display, building on the glued-corner structure with added edge strength. The reinforced corners and walls resist splaying so the tray holds its shape when filled and when other trays sit on top. The open geometry keeps loading and viewing simple while the firmer walls support heavier or stacked presentation. It can suit retail or service settings where trays are displayed in columns and must stay crisp under the weight above. Because the reinforcement folds from the blank, the tray still ships flat and erects into a sturdier form without a separate liner.
Good Fit For
- Stacked retail or service trays
- Heavier grouped or bundled items
- Display columns that must stay crisp
Key Advantages
- Reinforced walls resist splaying under load
- Supports steadier stacking
- Erects from a flat blank without a liner
Assembly & Construction
The corners glue and the walls fold to add reinforcement so the tray stands firmer than a plain four-corner build, holding square under stacked weight. The open top keeps assembly to erecting the reinforced walls. Packers square the tray, seat the firmer corners, and load from above, so the added structure supports the fill and any trays stacked on top without a separate stiffening insert.
Materials & Board Options
A heavier paperboard suits lighter reinforced trays, while corrugated grades are often chosen when trays stack or carry weight. The reinforced walls benefit from a caliper that folds cleanly yet stays firm under load. Final board, any flute, and coating typically depend on the contents weight, stacking, tray size, print, and handling, so a loaded, stacked sample usually confirms the build.
Pre-Production Planning Checklist
- Confirm the reinforced walls resist splaying under stacked weight
- Check stacking stays crisp with trays loaded
- Verify the corner glue holds at the reinforced thickness
